LM386 UTILITY AMPLIFIER
C1, C2 10uF 16V electrolytic
C3 .1uF capacitor
C4 .05uF capacitor
C5 220uF 16V electrolytic
R1 10 ohm 1/4w resistor
U1 LM386 amplifier
VR1 100K "A" taper pot
SPKR1 8 ohm speaker

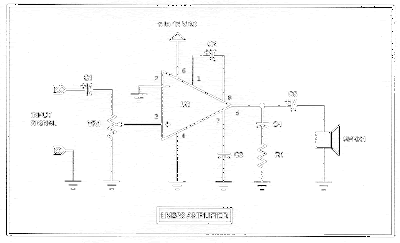

lm386 amplifier circuit
LM386 UTILITY AMPLIFIER
C1, C2 10uF 16V electrolytic
C3 .1uF capacitor
C4 .05uF capacitor
C5 220uF 16V electrolytic
R1 10 ohm 1/4w resistor
U1 LM386 amplifier
VR1 100K "A" taper pot
SPKR1 8 ohm speaker
lm386 amplifier circuit
